1325×320mm · Load Capacity: 300kg · Travel (X/Y/Z): 700/300/350mm

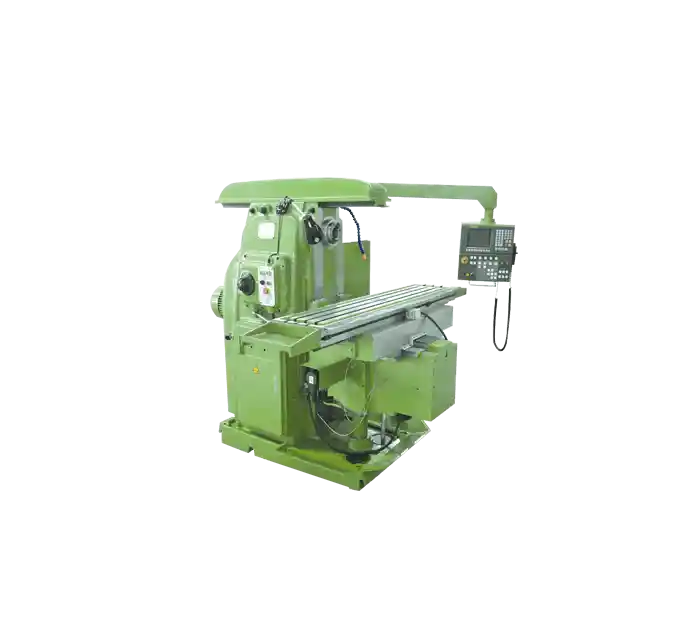

The XK6032 Series CNC Universal Milling Machine is engineered for flexible, multi-surface machining. Equipped with a CNC rotary table, it seamlessly transitions between vertical and horizontal milling modes. Capable of 360° automatic indexing with ±0.001° precision, it supports full four-axis machining—ideal for precision bar components, complex cavities, and angular features.Whether for batch work or prototyping, the XK6032 offers consistent accuracy, fewer setups, and reduced operator fatigue.

XK6032 Series

Regular maintenance

Spare parts supply

On-site installation service

Customized design

Key Features

● Large Worktable Capacity: Features a 1325×320 mm table with a 300 kg load capacity, providing stable clamping for long and heavy components.

● Three-Axis Precision Travel: Offers 700 mm (X), 300 mm (Y), and 350 mm (Z) travel range, accommodating a wide range of part sizes and geometries.

● CNC Rotary Table: Supports 360° automatic indexing and four-axis simultaneous machining for angular surfaces and cylindrical parts.

● Multi-Mode Machining: Performs vertical and horizontal milling, drilling, and boring in a single setup, increasing efficiency and precision.

● High Stability Design: Constructed with a rigid frame and advanced CNC control for precise motion and consistent machining accuracy under load. 2/2

Get More Details →

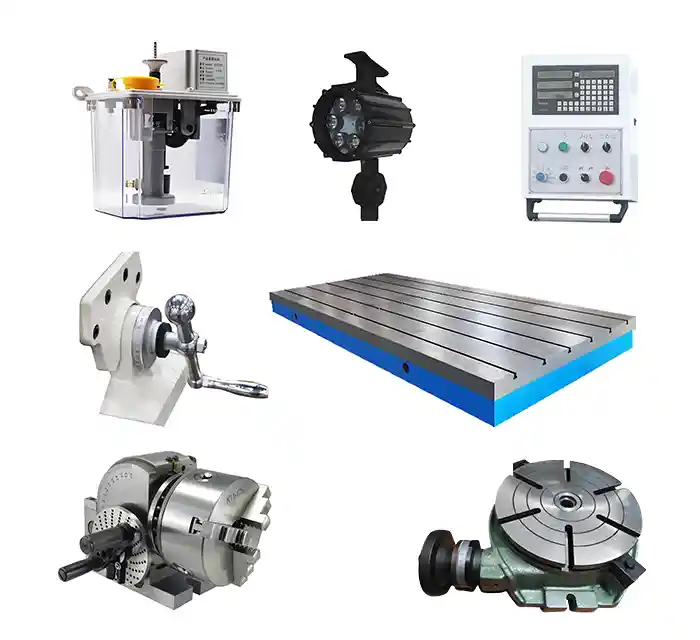

Recommended Configurations

● Spindle System: Adjustable speed spindle

● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table

● Feed System: Manual feed system, electric feed adjustment

● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication

● Clamping System: Standard fixtures, quick-change fixture device

● Precision Guideways: Rolling guideways or sliding guideways

● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc

Get More Details →

Application Case

● Client: Machinery Parts Manufacturer – South Korea

● Workpiece: Transmission flanges and gear housing bar stock

● Setup: XK6032 with CNC rotary table and DRO system

● Results: • Maintained machining tolerance within ±0.015 mm across multi-angled surfaces • Reduced part changeover time by 40% through four-axis programming • Enhanced surface finish consistency and reduced manual error

● Client Feedback: “The XK6032 streamlined our flange machining workflow and increased throughput without sacrificing precision.”

Get More Details →

0

MN CATALOG.pdf

Frequently Asked Questions

1、What is the difference between a universal vertical milling machine and a horizontal universal milling machine?

A universal vertical milling machine has a vertically oriented spindle, making it suitable for flat surface machining. A horizontal universal milling machine features a horizontally oriented spindle, ideal for side milling or long workpieces. Some high-end models can switch between vertical and horizontal modes, enhancing versatility.

2、What is the difference between a universal milling machine and a vertical milling machine?

Compared to a standard vertical milling machine, a universal milling machine typically features a multi-angle adjustable spindle head, a rotating worktable, and greater workpiece adaptability. It supports both vertical and horizontal multi-surface machining, making it ideal for complex structures and small-batch, variable-part production scenarios—such as the Huron universal milling machine.

3、I only have part drawings. Can you recommend a suitable universal milling machine?

Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's for a single universal milling machine or a production line with multiple machines, we can recommend a solution within 10 minutes. For full-line projects, a complete proposal will be delivered within 5 working days.

4、What customization options are available for universal milling machines?

We have full production capabilities and can customize the universal milling machine based on your specific needs, including travel range, spindle type, motor power, control system brand, and tool change method. Whether it's a traditional manual model or a CNC universal milling machine, non-standard customization is supported to meet a variety of machining scenarios.

5、How is the quality of a universal milling machine ensured?

We are equipped with high-end machining centers from top international brands, ensuring the machining precision of all core components of our universal milling machines. Each unit undergoes full machine testing before delivery and includes a quality inspection report to ensure it meets delivery standards.

6、What is the typical delivery time for a universal milling machine?

For standard models, we maintain stock for fast delivery. If you require a customized universal milling machine or a horizontal universal milling machine, the delivery time is typically 30–45 working days, depending on the configuration.

7、 What does your after-sales service include?

The equipment you purchase comes with a one-year warranty. During the warranty period, you are entitled to free repair services in the event of equipment failure. We also provide remote video guidance, phone-based technical support, and on-site service when needed to help you resume production quickly and minimize downtime.

8、What is the general price range for a universal milling machine?

The universal milling machine price varies depending on the model, configuration (such as whether it's a CNC bed type universal milling machine), travel specifications, and whether customization is required. Minnuo will provide a detailed and transparent formal quotation based on your specific needs, with optional inclusion of taxes and shipping.
