Electric Spindle Milling Head • Low Noise & High Torque

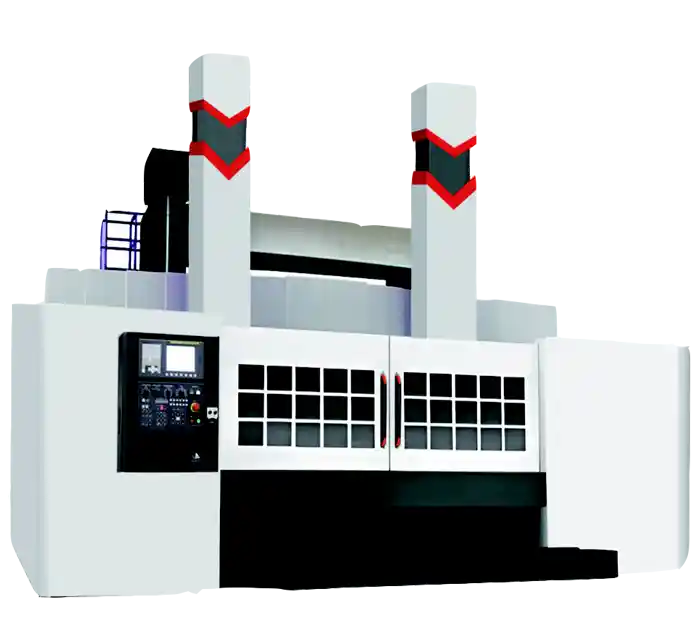

The VSL CNC Double-Column Vertical Turn-Mill Machining Center is a high-performance machine for large, complex workpieces. It combines turning, milling, boring, and more in one setup, ideal for industries like aerospace and automotive. With a high-torque spindle, precision bearings, and Siemens 840DSl control, it offers excellent accuracy and stability, with options for an automatic tool magazine and hydraulic station for added efficiency.
VSL
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Multi-Process Machining： Performs turning, milling, boring, drilling, tapping, reaming, and grinding in one setup, improving productivity and reducing part handling.

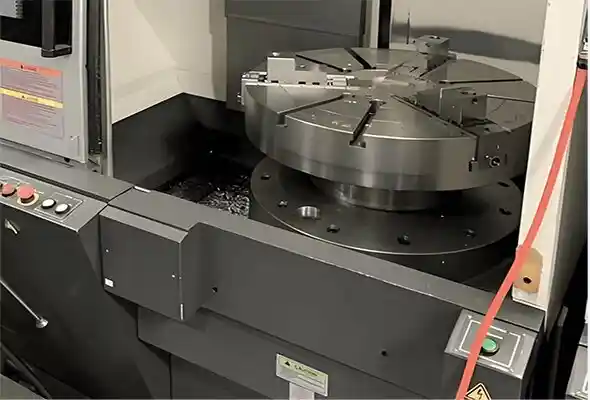

- ● High-Precision Worktable Spindle： Equipped with double-row cylindrical roller bearings for radial centering and large thrust bearings for axial guidance, ensuring smooth and precise operation.
- ● C-Axis Indexing Function： Eliminates gear transmission clearance, providing C-axis positioning accuracy of ±0.001°, perfect for high-precision operations.
- ● Electric Spindle Milling Head： The electric spindle structure provides high torque, low noise, and stable performance with water cooling for maintaining constant temperature during long operations.
- ● Siemens 840DSl System： Advanced control system for high-precision machining and the ability to integrate with an automatic tool magazine for enhanced automation.
Get More Details →

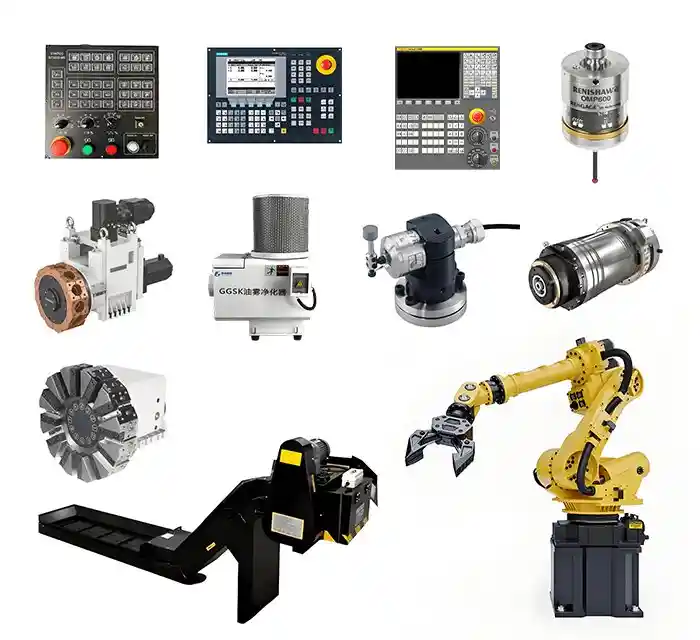

Recommended Configurations
- ● Spindle Configuration: High-speed Electric Spindle, Dual Spindle System, Y-axis Powered Tool Turret
- ● Tooling System: Servo Tool Turret, Tool Compensation System
- ● Clamping System: Hydraulic Clamps, Pneumatic Clamps, Mechanical Clamps, Magnetic Clamps
- ● Feed and Drive System: Linear Drive, Ball Screws, Servo Motors
- ● Cooling and Lubrication System: Internal Cooling System, External Cooling System, High-pressure Cooling System
- ● Control System: High-performance CNC System (FANUC, Siemens, GSK, KND, SYNTEC, Mitsubishi, etc.)
- ● Other Configurations: Robot Arm, Renishaw OMP60 Workpiece Probe, Renishaw TS27R Tool Setting Probe, Chain-Type Chip Conveyor, Oil Mist Collector
Get More Details →
Application Case
- ● Client: Heavy Equipment Manufacturer – Germany

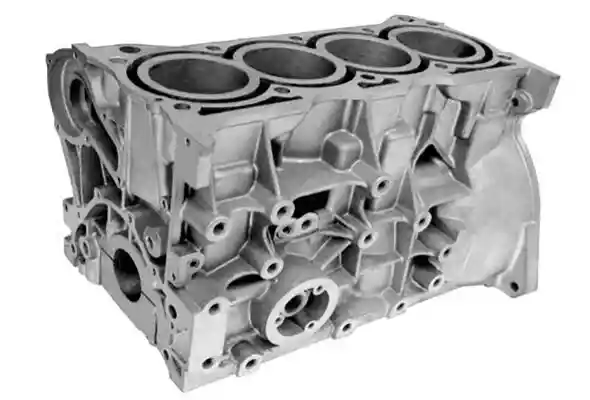

- ● Use Case: Machining of large, complex machinery components (e.g., turbine housings, engine blocks)
- ● Setup: VSL CNC Double-Column Vertical Turn-Mill Machining Center with automatic tool magazine, angle milling head, and hydraulic station
- ● Results: • Precision: Achieved tight tolerances of ±0.005mm for large components • Increased Efficiency: Machining time reduced by 25% with multi-process capability and automated tool management • Improved Workpiece Quality: Superior surface finish and reduced tool wear due to optimized cooling and stable spindle performance
- ● Client Feedback: "The VSL machining center has revolutionized our ability to handle large, complex components. Its precision and multi-functionality have significantly increased both efficiency and product quality."
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
The CNC Double-Column Vertical Turn-Mill Machining Center combines both turning and milling functions, offering high rigidity and precision. Its double-column design enhances stability and load-bearing capacity, making it ideal for heavy-duty and large workpieces.
This mill and turn machine is widely used in industries such as aerospace, automotive, shipbuilding, energy, and mold making. It is especially suited for machining large, high-precision parts such as shafts, flanges, and gears.
The mill and turn machine has a maximum processing diameter of up to 6000mm, a maximum workpiece height of 2500mm, and can handle workpieces weighing up to 30 tons, making it suitable for large and high-precision parts.
Equipped with an advanced CNC system and an intuitive interface, the machine is easy to operate. With proper training, operators can quickly master the machine and handle complex machining tasks.
Yes, the cnc turning and milling machine can be customized according to specific customer needs, including spindle speed, motor power, machining stroke, and more.
The machine ensures high precision through its rigid design and high-precision CNC system. Key components are sourced from top brands, ensuring stability and accuracy during machining.
Standard models are available for quick delivery. Customized models typically have a delivery time of 30 to 45 working days.
We provide a one-year warranty with 24-hour technical support. Any issues during use can be addressed through remote support, phone consultations, or on-site service.
