320 × 1600 mm Table • 900 mm Manual Travel • Multi-Tool Vertical Spindle

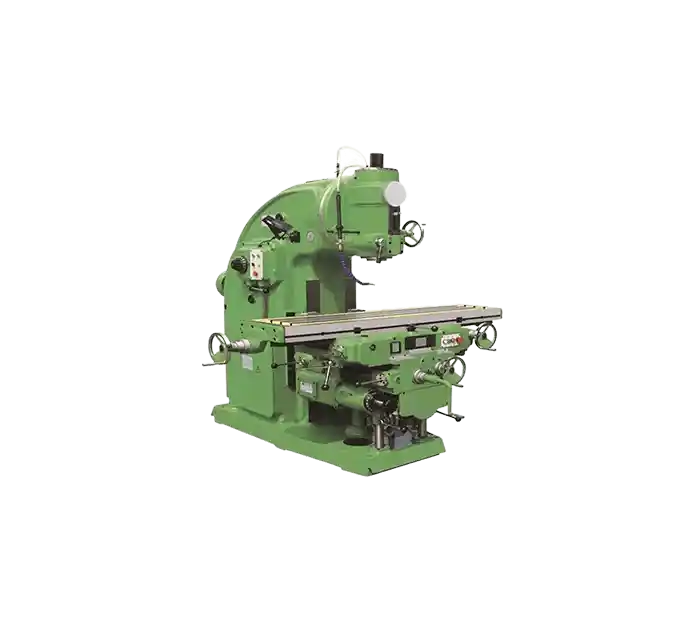

The X5032 Series Vertical Lift Table Milling Machine features a height-adjustable worktable and rigid vertical spindle for versatile operations like surface milling, boring, and keyway cutting. Built with HT300 cast iron and advanced support systems, it offers stability, precision, and durability for workshop and production use.
X5032 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Reinforced Machine Bed: Constructed from HT300 resin-sand cast iron with 3D ribbing to ensure high rigidity and minimal deflection under load.
- ● High-Rigidity Guideway System: 45 mm roller linear guides and hardened box ways (HRC58–62) provide durability and smooth, precise feed movement.
- ● Precision Feed Mechanism: C3-grade ball screws and ≥90% contact surface ensure ±0.003 mm positioning accuracy during machining.
- ● Intelligent Cooling & Lubrication: Dual-circuit 12 MPa coolant system with 12 μm filtration maintains thermal stability and chip-free cutting zones.
- ● Progressive Centralized Lubrication: Automatically supplies precise oil volumes to all key motion areas for reduced wear and maintenance.
Get More Details →

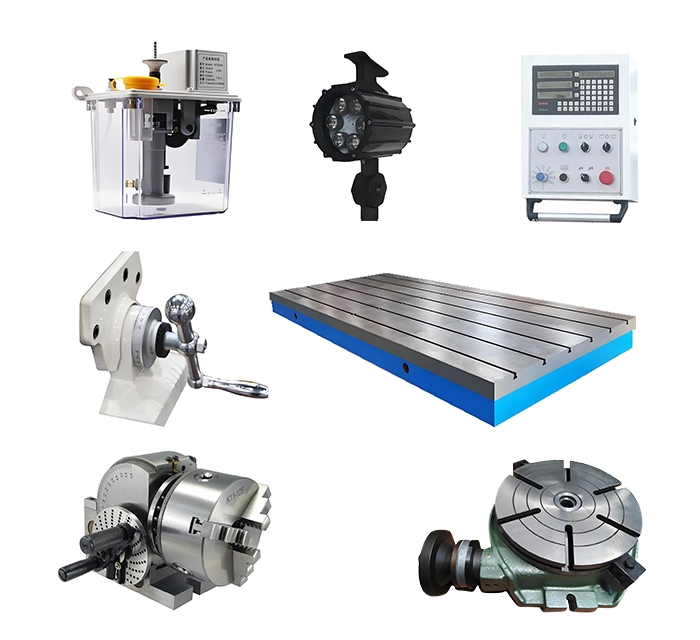

Recommended Configurations
- ● Spindle System: Adjustable speed spindle
- ● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table
- ● Feed System: Manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc
Get More Details →
Application Case
- ● Client: Custom Tooling Manufacturer – India

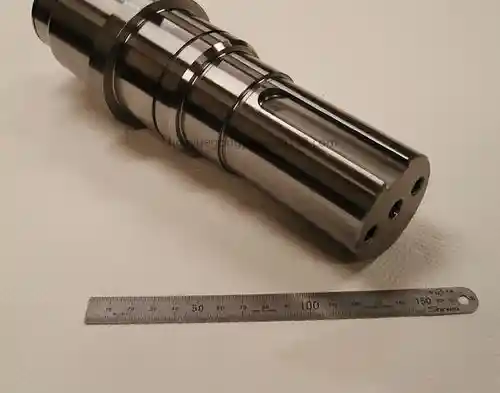

- ● Workpiece: Fixture bases, keyways, and mounting surfaces
- ● Setup: X5032 equipped with DRO and rotary table
- ● Results: • ±0.015 mm repeatability achieved in keyway cutting • Reduced part repositioning by 35% using rotary fixture • Setup time shortened by 25% with intuitive manual feed and DRO
- ● Client Feedback: “A perfect fit for our batch production needs, offering the rigidity of a heavy-duty vertical mill with the simplicity of manual control.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's a single vertical milling machine or a fully automated production line with multiple machines, we can usually provide a recommendation within 10 minutes, and a full line configuration within 5 working days.
Common parts of a vertical milling machine include the spindle, column, slide, worktable, ball screw, tool magazine, and control system. Daily maintenance is not complicated — I only need to regularly check the lubrication system, clean the guideways, and monitor the spindle condition. Maintenance manuals and training support are also provided.
A 3 axis CNC vertical milling machine supports X/Y/Z axis linkage and is suitable for standard planar machining. A 4 axis CNC vertical milling machine adds a rotary axis, enabling side and curved surface machining, which improves the ability to process complex parts. If my workpieces include angled surfaces or multi-sided holes, the 4-axis model is recommended.
Minnuo has complete machining and assembly capabilities. Based on my actual production needs, I can customize the vertical milling machine in terms of travel, spindle type, motor power, table size, control system, and automatic tool changer, achieving a fully personalized configuration.
Yes, absolutely. We are equipped with high-end machining centers from top international brands to ensure high-precision processing of all core components of the vertical milling machine. Each machine is fully tested before delivery and comes with a detailed inspection report.
For standard models, we have stock available for fast delivery. For customized vertical milling machines, the delivery time is typically 30–45 working days. The exact delivery time will be confirmed based on configuration complexity and production scheduling.
The equipment I purchase comes with a one-year warranty. During the warranty period, if any equipment failure occurs, I can receive free repair services. You also offer phone, video remote support, or on-site service to ensure I can quickly resume production.
A 5 axis vertical milling machine supports high-precision machining of complex surfaces, angled planes, and multi-faceted components. It is ideal for industries such as mold manufacturing, aerospace parts, and orthopedic medical devices. If I require high spatial angle control accuracy or want to reduce the number of setups and increase one-time machining completion, the 5-axis model is the ideal choice.
