φ1270mm Table Size · 720mm X Travel · 400mm Z Travel

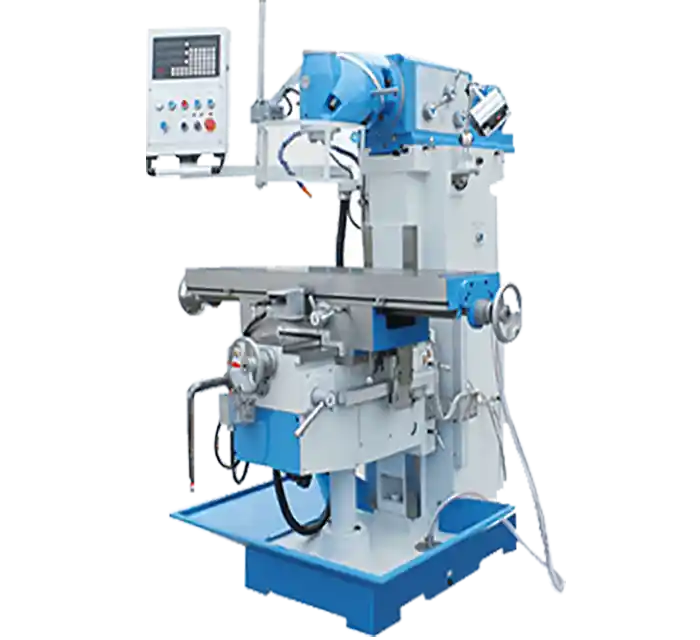

The XL6230 vertical ram milling machine is a reliable, cost-effective solution for general-purpose milling, ideal for job shops, workshops, and small-scale manufacturers. Its hardened three-axis guideways and hand-scraped contact surfaces ensure long-term accuracy and rigidity, while the manual operation with servo-supported table feed allows for smoother handling and efficient workflow.
XL6230 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Robust vertical ram structure for stable milling performance
- ● Three-axis hardened guideways ensure long-term accuracy
- ● Manual feed + optional servo motor-assisted table movement
- ● Hand-scraped surfaces improve sliding accuracy and contact quality
- ● Compatible with DRO upgrades and CNC system customization
Get More Details →
Recommended Configurations
- ● Spindle System: Infinitely variable speed spindle, 360° rotating head
- ● Worktable: Large-size horizontal ±45° rotating worktable
- ● Feed System: Three-axis ball screws, manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray system, cooling water tank, automatic electronic lubrication pump
- ● Clamping System: Dividing Head, custom fixture
- ● Drive System: Three-axis independent servo motor drive
- ● Precision Guideways: Rolling guideways or sliding guideways

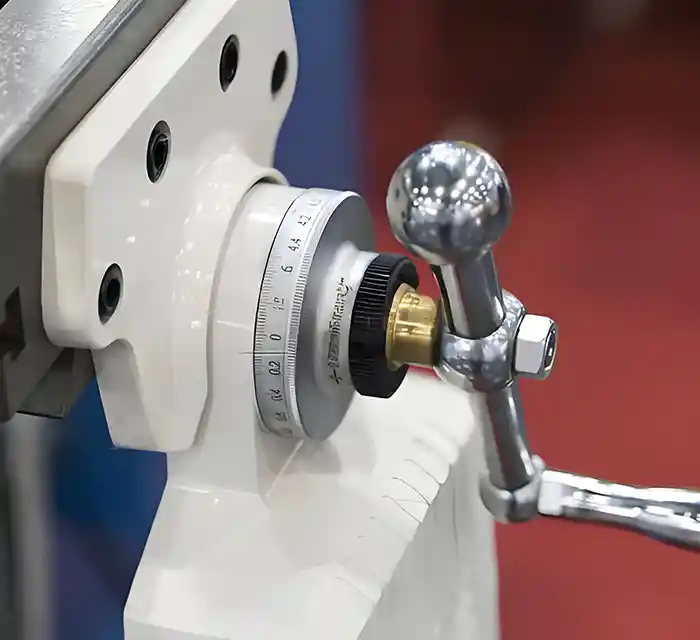

- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, E-type handwheel, protective covers, emergency stop button, and safety lock
Get More Details →
Application Case
- ● Client: Industrial Tool Manufacturer – Turkey

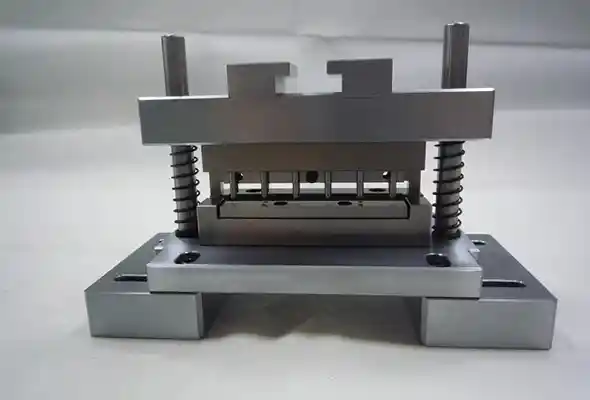

- ● Use Case: Machining of fixture plates and jigs for internal production
- ● Setup: XL6230 with DRO and servo motor-controlled table feed
- ● Results: Milling tolerance held: ±0.02mm, operator productivity increased: +30% with DRO support, setup time reduced: 40% due to intuitive control, client feedback: “Perfect fit for our small-run machining needs with future upgrade flexibility.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's a single vertical milling machine or a fully automated production line with multiple machines, we can usually provide a recommendation within 10 minutes, and a full line configuration within 5 working days.
Common parts of a vertical milling machine include the spindle, column, slide, worktable, ball screw, tool magazine, and control system. Daily maintenance is not complicated — I only need to regularly check the lubrication system, clean the guideways, and monitor the spindle condition. Maintenance manuals and training support are also provided.
A 3 axis CNC vertical milling machine supports X/Y/Z axis linkage and is suitable for standard planar machining. A 4 axis CNC vertical milling machine adds a rotary axis, enabling side and curved surface machining, which improves the ability to process complex parts. If my workpieces include angled surfaces or multi-sided holes, the 4-axis model is recommended.
Minnuo has complete machining and assembly capabilities. Based on my actual production needs, I can customize the vertical milling machine in terms of travel, spindle type, motor power, table size, control system, and automatic tool changer, achieving a fully personalized configuration.
Yes, absolutely. We are equipped with high-end machining centers from top international brands to ensure high-precision processing of all core components of the vertical milling machine. Each machine is fully tested before delivery and comes with a detailed inspection report.
For standard models, we have stock available for fast delivery. For customized vertical milling machines, the delivery time is typically 30–45 working days. The exact delivery time will be confirmed based on configuration complexity and production scheduling.
The equipment I purchase comes with a one-year warranty. During the warranty period, if any equipment failure occurs, I can receive free repair services. You also offer phone, video remote support, or on-site service to ensure I can quickly resume production.
A 5 axis vertical milling machine supports high-precision machining of complex surfaces, angled planes, and multi-faceted components. It is ideal for industries such as mold manufacturing, aerospace parts, and orthopedic medical devices. If I require high spatial angle control accuracy or want to reduce the number of setups and increase one-time machining completion, the 5-axis model is the ideal choice.
