1600×320mm Table Size · 1300mm X Travel · 320mm Y Travel · 450mm Z Travel

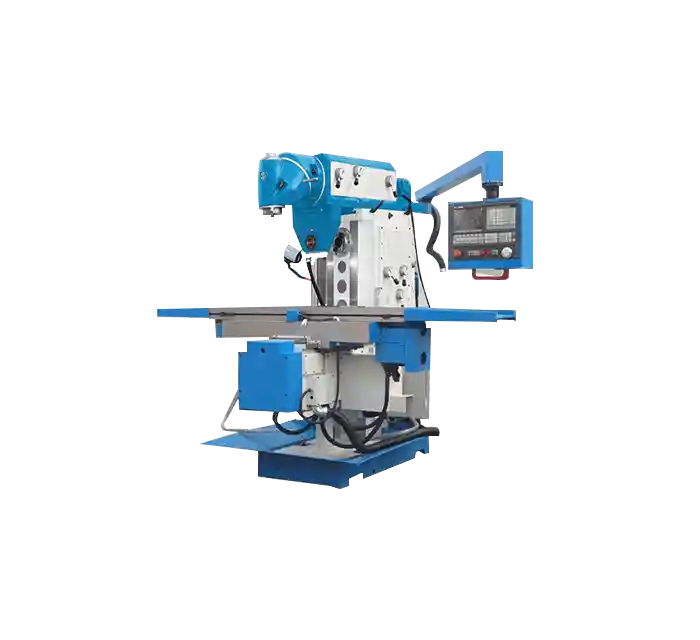

The XLK6432CL is the extended-table version of the XLK6432 Series CNC Ram Milling Machine, offering increased table length and X-axis travel for larger workpieces or multi-station fixtures. Designed for both vertical and horizontal machining, it’s ideal for manufacturers seeking greater flexibility without sacrificing floor space.
XLK6432 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features

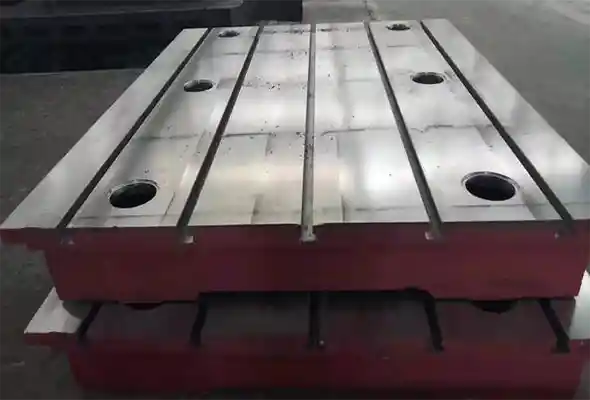

- ● Extended 1600mm table: Accommodates long components or multiple fixtures.
- ● Dual-spindle design: Supports both horizontal and vertical milling operations.
- ● Hand-scraped + plastic-coated guideways: Reduce vibration and improve precision.
- ● CNC controller: Enables automation of complex cycles and custom routines.
- ● Modular safety enclosure: Enhances operator protection and cleanliness.
Get More Details →
Recommended Configurations
- ● Spindle System: Adjustable speed spindle
- ● Worktable: T-slot worktable, ±45° rotating worktable, coordinate system，Rotary table
- ● Feed System: Manual feed system, electric feed adjustment
- ● Cooling and Lubrication System: Coolant spray device，Automatic centralized oil lubrication
- ● Clamping System: Standard fixtures, quick-change fixture device
- ● Precision Guideways: Rolling guideways or sliding guideways
- ● Other (Safety Protection System): 45° high-speed rotating tool turret, digital readout, dividing head, protective covers, emergency stop button and safety lock, LED work lamp，cutting disc
Get More Details →
Application Case
- ● Client: Precision Mold Manufacturer – South Korea.
- ● Use Case: Milling of long mold base plates with multiple pockets and alignment features.
- ● Setup: XLK6432CL with full enclosure, rotary table, and tool probe.
- ● Results: Dimensional repeatability: ≤ ±0.015 mm, Production uptime per day: 22+ hours with minimal operator intervention, Cycle time reduction: 40% compared to vertical-only machining, Client feedback: “The extended X-axis travel and horizontal head option doubled our shop's throughput.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Absolutely! Minnuo has a strong and responsive pre-sales team. As long as you provide part drawings, whether it's a single vertical milling machine or a fully automated production line with multiple machines, we can usually provide a recommendation within 10 minutes, and a full line configuration within 5 working days.
Common parts of a vertical milling machine include the spindle, column, slide, worktable, ball screw, tool magazine, and control system. Daily maintenance is not complicated — I only need to regularly check the lubrication system, clean the guideways, and monitor the spindle condition. Maintenance manuals and training support are also provided.
A 3 axis CNC vertical milling machine supports X/Y/Z axis linkage and is suitable for standard planar machining. A 4 axis CNC vertical milling machine adds a rotary axis, enabling side and curved surface machining, which improves the ability to process complex parts. If my workpieces include angled surfaces or multi-sided holes, the 4-axis model is recommended.
Minnuo has complete machining and assembly capabilities. Based on my actual production needs, I can customize the vertical milling machine in terms of travel, spindle type, motor power, table size, control system, and automatic tool changer, achieving a fully personalized configuration.
Yes, absolutely. We are equipped with high-end machining centers from top international brands to ensure high-precision processing of all core components of the vertical milling machine. Each machine is fully tested before delivery and comes with a detailed inspection report.
For standard models, we have stock available for fast delivery. For customized vertical milling machines, the delivery time is typically 30–45 working days. The exact delivery time will be confirmed based on configuration complexity and production scheduling.
The equipment I purchase comes with a one-year warranty. During the warranty period, if any equipment failure occurs, I can receive free repair services. You also offer phone, video remote support, or on-site service to ensure I can quickly resume production.
A 5 axis vertical milling machine supports high-precision machining of complex surfaces, angled planes, and multi-faceted components. It is ideal for industries such as mold manufacturing, aerospace parts, and orthopedic medical devices. If I require high spatial angle control accuracy or want to reduce the number of setups and increase one-time machining completion, the 5-axis model is the ideal choice.
