φ200mm Max Workpiece Diameter (External Gear) · 70mm Max Stroke Length · 60mm Max Gear Width

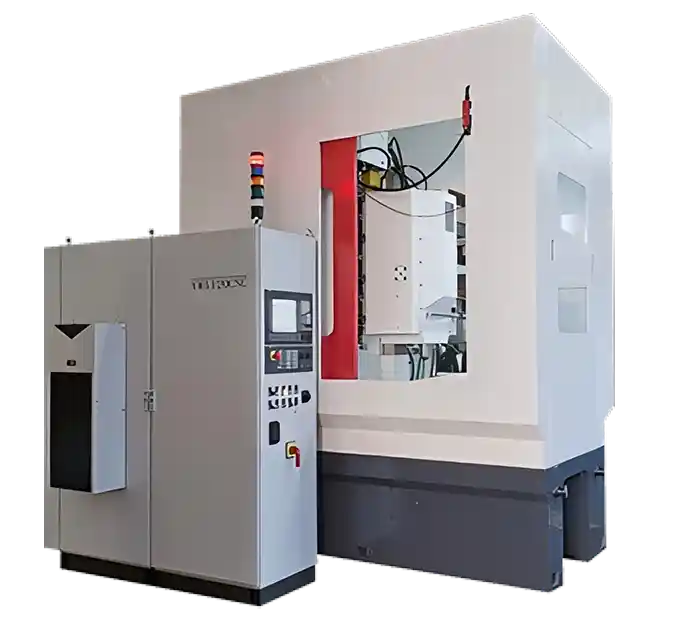

The YW5120 CNC Gear Shaping Machine is a high-precision metal-cutting machine tool capable of generating gear teeth by a reciprocating cutter stroke, synchronously indexing the workpiece to form accurate gear profiles.
YW5120 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● CNC shaping of internal and external straight or helical gears
- ● Handles external gear diameters up to φ200mm and gear widths up to 60mm
- ● Stroke length of 70mm for flexibility across gear sizes
- ● Capable of producing involute, crowned, or tapered teeth
- ● High-speed reciprocating motion with low vibration
- ● Ideal for robotics, automotive gear trains, and reduction gear sets
Get More Details →
Recommended Configurations
- ● Accessory: Shaping Cutter (HSS or Carbide) Function: Based on material hardness and gear form for precise cutting.
- ● Accessory: Automatic Chip Conveyor Function: Keeps cutting area clear during high-frequency stroke cycles.
- ● Accessory: Gear Pitch Error Compensation Module Function: Improves profile accuracy for high-load gears.
- ● Accessory: Workpiece Clamping System with Hydraulic Tailstock Function: Stabilizes part during shaping for consistent results.
- ● Accessory: Coolant Mist System Function: Extends tool life and improves chip evacuation during cutting.
- ● Accessory: Inline Optical Gear Inspection System Function: Detects deviations in pitch and profile during operation for higher accuracy.
Get More Details →
Application Case
- ● Client: Robotic Gearbox Manufacturer – Italy
- ● Use Case: Shaping internal straight gears for compact planetary reducers in industrial robots
- ● Setup: YW5120 with customized HSS cutter, pitch error compensation, and precision tailstock
- ● Results: Tooth pitch accuracy: ≤ ±0.01mm Surface roughness (Ra): ≤ 0.8 μm Productivity: Up to 20 pieces/hour per setup
- ● Client feedback: “The YW5120 delivers the precision we need for compact gears without compromising speed.”
Get More Details →
Product Specifications
