φ110mm · Max. Spindle Torque: 1225Nm · Table Size: 1100×960mm · Max. Table Load: 2500kg

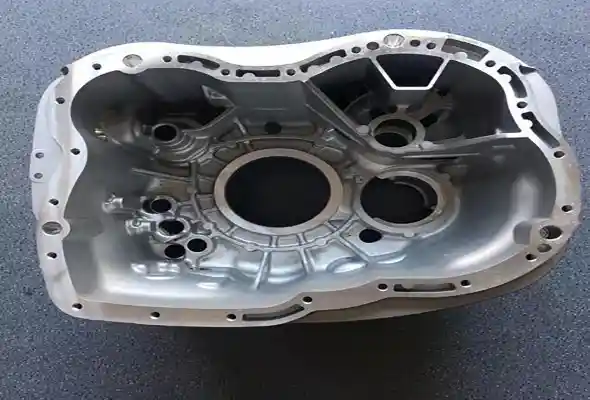

Ideal for precision coordinate boring, surface facing, and complex multi-position hole processing on parts like engine blocks, pump housings, gearbox shells, and tooling bases. Perfect for repair workshops, mold factories, and mechanical component manufacturers requiring repeatable bore accuracy and digital control.

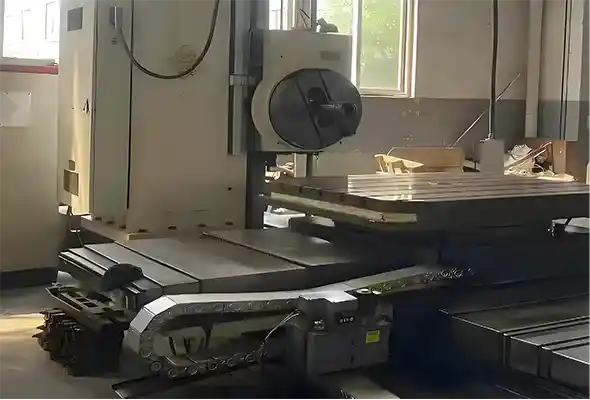

TPX6111B Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● High-Torque φ110mm Boring Spindle (1225Nm) Ensures excellent cutting force for deep holes and wide bores in alloy steel, cast iron, or composites.
- ● Precision Table with 2.5T Load Capacity Accommodates workpieces like gear casings, transmission bodies, and machinery brackets.
- ● Optional 3-Axis/4-Axis DRO Integration Allows real-time tracking and repeat positioning during complex hole layouts and multiple side features.
- ● Rigid Machine Column and Cross-Slide System Guarantees thermal stability and low deflection during prolonged operations.
- ● Semi-Automatic or Manual Feed Control Flexible operation for both skilled manual machining and semi-programmable sequences.
Get More Details →
Recommended Configurations
- ● High-Resolution DRO: Enables coordinate boring with minimal deviation.
- ● Angle Milling Head: Adds capability to bore and mill on non-vertical surfaces.
- ● Boring Bar Extensions: For processing deep cylindrical holes in tall castings.

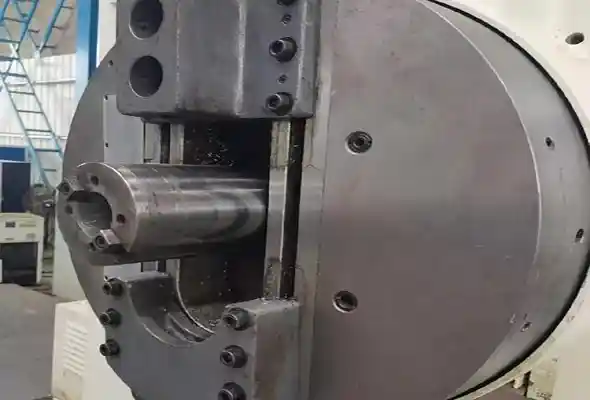

- ● Facing Tool System: Allows flat surface generation, ideal for sealing faces and gear ports.
- ● Adjustable Clamping Fixtures: Secures complex-shaped parts quickly and safely.
Get More Details →
Application Case
- ● Client: Aerospace Component Supplier – Middle East
- ● Use Case: Precision boring of landing gear brackets and actuator bases
- ● Setup: TPX6111B/2 with DRO and tilting clamp fixtures
- ● Results: Hole-to-hole repeatability ≤ ±0.012 mm, setup time reduced by 40% using DRO coordinates
- ● Operator Feedback: “Ideal for controlled multi-axis boring without CNC complexity.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
Minnuo’s horizontal boring machines are ideal for large and medium-sized workpieces, such as engine blocks, heavy machinery bases, gearbox housings, aerospace components, and energy equipment structures.
Our machines feature a horizontal spindle, moving table (or floor plates), column movement (Y-axis), spindle movement (Z-axis), and optional rotary tables for complex angle machining.
Minnuo horizontal borers achieve positioning accuracy within ±0.01 mm, repeatability within ±0.008 mm, and surface roughness up to Ra 0.8–1.6 μm, ensuring high-quality performance for heavy-duty parts.
Of course! Just provide your part dimensions, hole sizes, material type, and processing requirements, and Minnuo’s engineers will recommend the most suitable horizontal boring machine model within 10 minutes.
Absolutely. We can customize spindle diameter and power, travel dimensions (X/Y/Z), rotary table size, automatic tool changers (ATC), and integrate with automation systems.
We use high-rigidity Meehanite casting beds, hardened and ground guideways, servo drive technology, laser interferometer calibration, and perform trial cutting tests before delivery.
Standard models are delivered within 60–90 working days. Fully customized machines may take 90–120 working days, depending on specifications.
Minnuo offers a one-year warranty, 24/7 technical support, remote diagnostics, on-site installation training, and long-term spare parts supply (10+ years).
