Electric Spindle Grinding Head • High-Speed & Low Noise
The CKM51 Series CNC Vertical Lathe-Grinding Compound Machine integrates turning and grinding for improved efficiency, reduced costs, and enhanced accuracy. Its unique design with dual CNC tool holders enables continuous operations, while the electric spindle with water cooling ensures stable, high-speed performance, making it ideal for automotive, aerospace, and military applications.
CKM51 Series
Spare parts supply
On-site installation service
Customized design
Why Choose Our CNC Solutions
Key Features
- ● Dual Tool Holders： Turning and grinding tools are combined in one setup, allowing for simultaneous machining, improving efficiency and reducing production time.

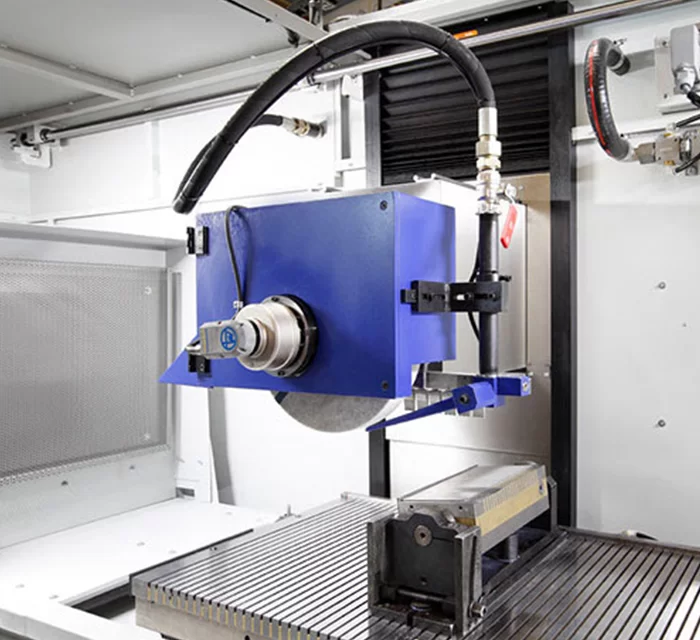

- ● Electric Spindle Grinding Head： The grinding head is equipped with an electric spindle structure, water-cooled for stable, high-speed, and low-noise operation.
- ● High-Precision Bearings： The main shaft uses high-precision adjustable radial clearance double-row short cylindrical roller bearings for radial centering, and high-precision large thrust bearings for axial guidance.
- ● Symmetrical Workbench Structure： Provides balance and stability, enhancing the machine's precision during operations.
- ● Smooth Crossbeam Lifting： The crossbeam is lifted and lowered by a double-screw system, improving the smoothness and accuracy of the machine tool.
Get More Details →

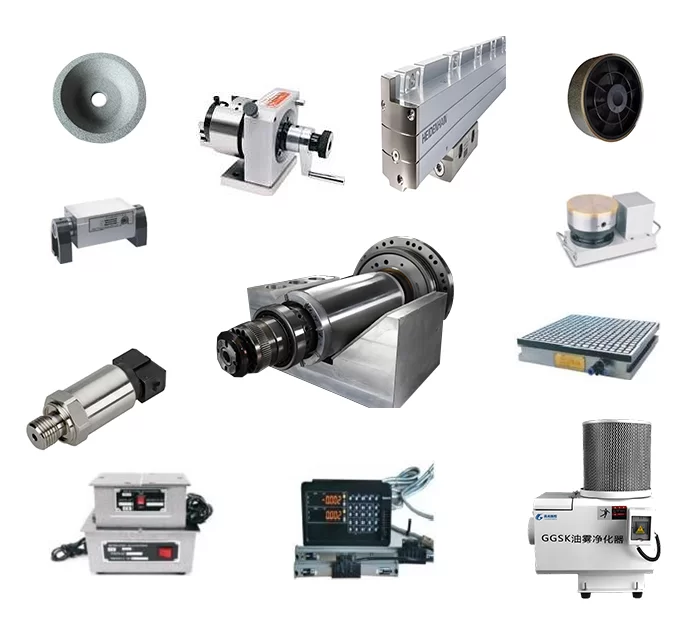

Recommended Configurations
- ● Spindle System: High-precision spindles, spindle motors and cooling systems, spindle adjustment system (adjustable grinding head).
- ● Feed and Worktable System: High-precision servo motors, ball screws, linear guides, electric worktable lifting and feed control, magnetic worktables or mechanical clamping systems (depending on workpiece requirements).
- ● Cooling and Chip Removal System: Coolant circulation system and injection system, high-efficiency filtration devices, automatic chip removal conveyors and chip collection tanks.
- ● Electrical and Automation System: CNC control systems and PLC, human-machine interface (HMI) and automatic dressing control, automatic loading and unloading system, and workpiece clamping devices.
- ● Grinding Wheel and Grinding Head System: Electric grinding wheel adjustment devices and dressers, adjustable grinding head devices (horizontal or vertical), grinding wheel balancing systems.
- ● Precision Positioning and Vibration Suppression System: Laser or optical measurement systems and displacement sensors, dynamic vibration suppression systems and damping devices.
- ● Safety and Lubrication System: Protective covers, safety doors, emergency stop buttons, automatic lubrication systems and lubrication oil filtration devices.
- ● Cutting Tools and Accessories: Grinding wheel dressing tools and workpiece fixtures.
Get More Details →
Application Case

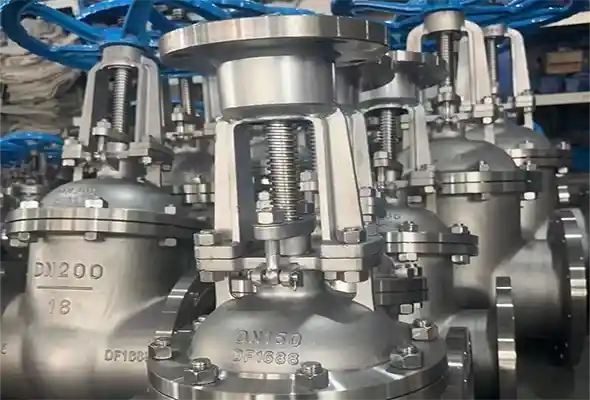

- ● Client: Valve Manufacturer – Italy
- ● Use Case: Machining of high-precision valve components
- ● Setup: CKM51 Series with dual CNC tool holders, electric spindle grinding head, and servo motor control
- ● Results: • Simultaneous Machining: Achieved faster production by processing turning and grinding operations in one setup • Increased Precision: Tighter tolerances of ±0.01mm maintained for complex valve parts • Improved Productivity: Production efficiency increased by 30%
- ● Client Feedback: “The CKM51 has significantly improved our production flow and reduced setup time. The ability to perform turning and grinding in one machine is a huge advantage for our operations.”
Get More Details →
Product Specifications
0
Catalog
Frequently Asked Questions
The CNC Vertical Lathe-Grinding Compound Machine combines both turning and grinding functions, offering high precision machining capabilities. It is ideal for complex workpieces, improving production efficiency, reducing processing time, and ensuring high precision and surface quality.
This machine is widely used in industries such as aerospace, automotive, energy, machinery, and mold making. It is especially suitable for machining large and high-precision workpieces like shafts, discs, and flanges.
This machine offers a large processing diameter and high machining precision. The maximum processing diameter can reach 5000mm, with a maximum workpiece weight of up to 15 tons, making it suitable for large and high-precision parts machining.
Yes, the CNC Vertical Lathe-Grinding Compound Machine can be customized according to user needs, including spindle speed, motor power, and tool configurations to meet different machining requirements.
The machine features a modular design, making maintenance and servicing easier. Its mechanical, electrical, and hydraulic systems are integrated for stable long-term operation. We also offer regular check-ups and maintenance services to ensure machine accuracy and reliability.
The high precision of the CNC Vertical Lathe-Grinding Compound Machine is ensured by its rigid structure, precise control system, and high-quality components. We use parts from well-known brands to maintain stable accuracy during machining.
Standard models are in stock and can be delivered quickly. Customized models typically have a delivery time of 30 to 45 working days.
We offer a one-year warranty, with free repair services during the warranty period. If the equipment malfunctions, customers can contact our after-sales team through remote technical support, phone calls, or on-site service for quick issue resolution.
